2.3.3 Research of suitable algorithms to compare product shapes with their CAD models

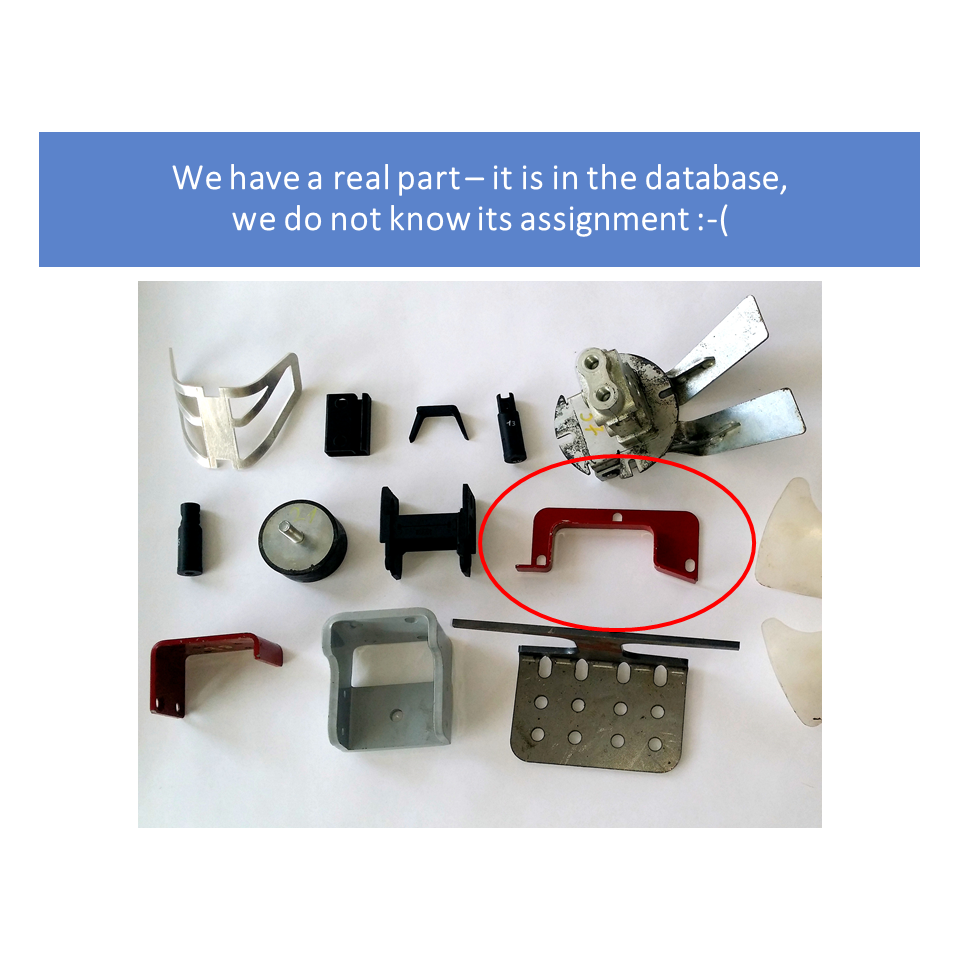

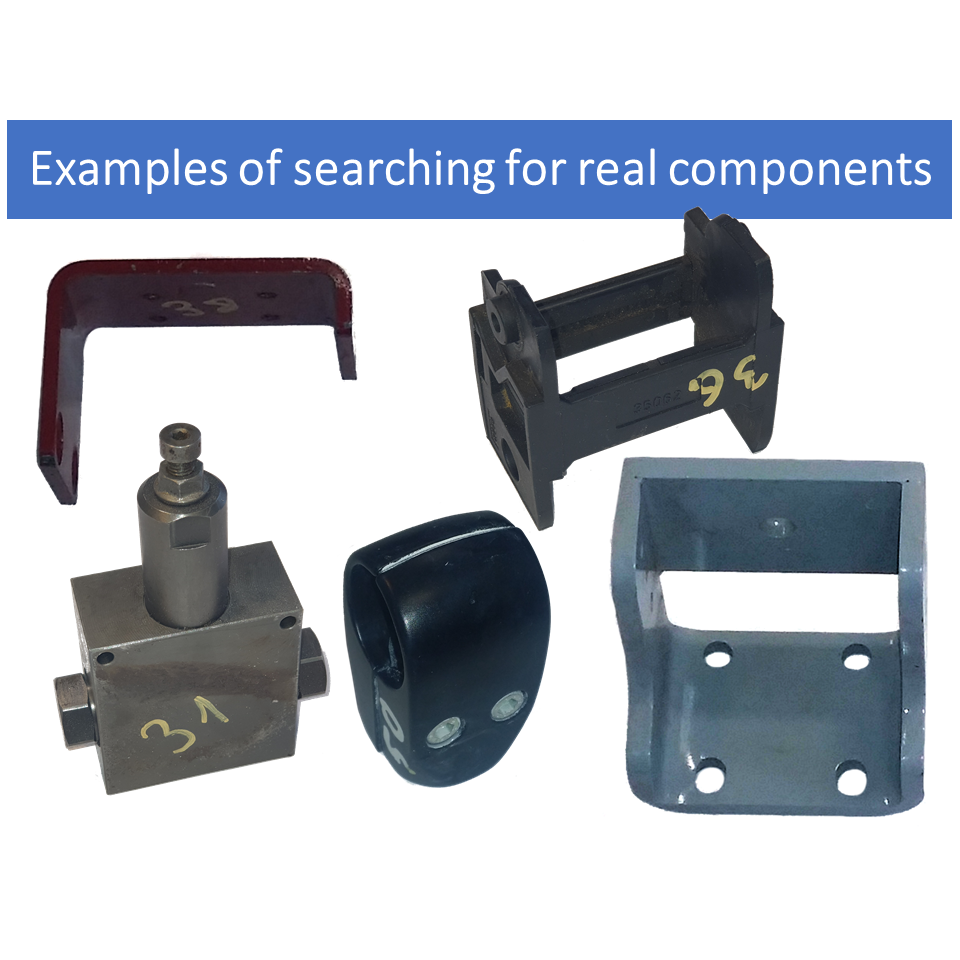

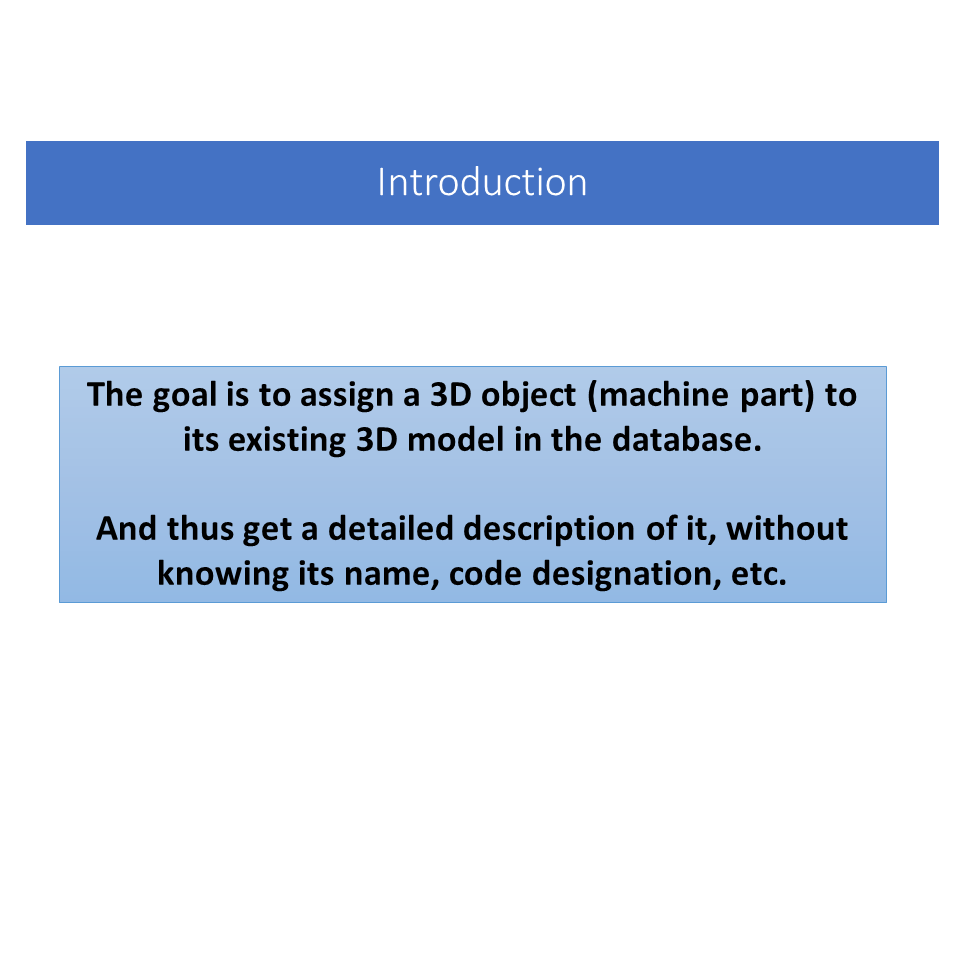

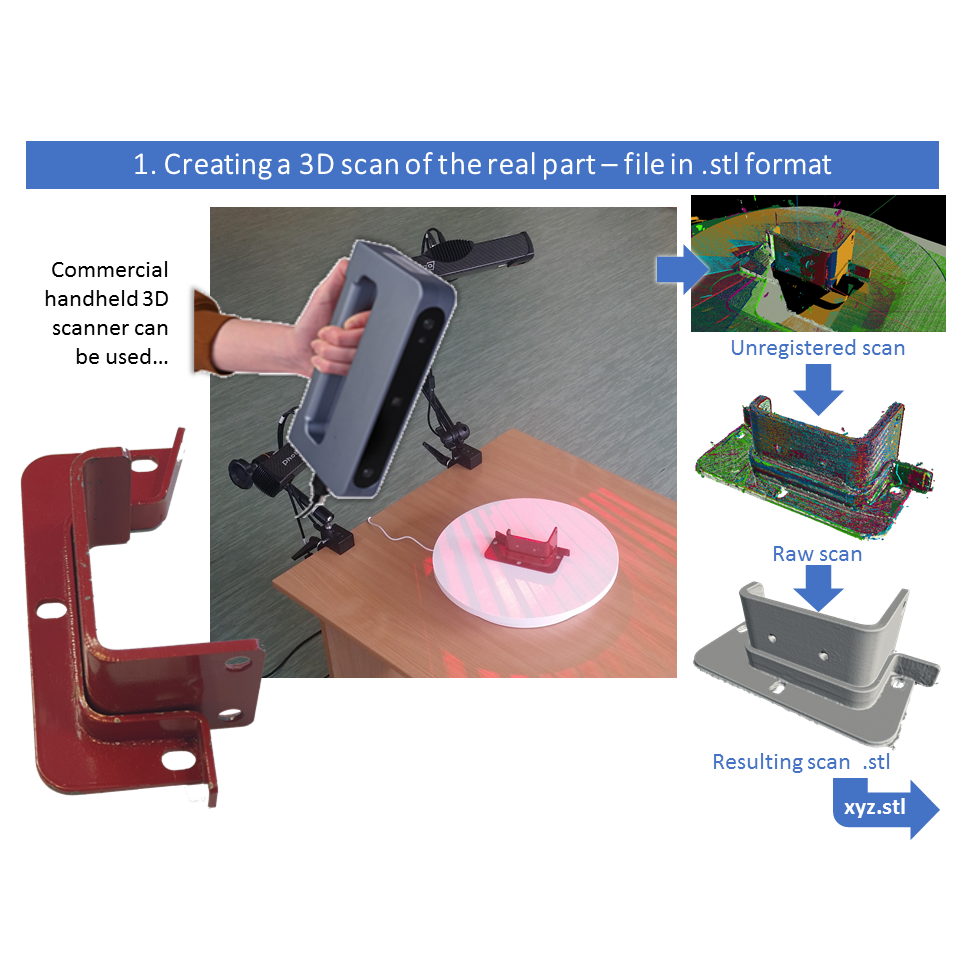

The goal of this research is to design a system capable of automated identification of a physical object (mechanical component of a machine) by comparing its 3D scan with a database of 3D models.

The comparing (matching) algorithm is described in the following journal article:

• Straková, E., Lukáš, D., Bobovský, Z., Kot, T., Mihola, M., Novák, P. Matching Point Clouds with STL Models by Using the Principle Component Analysis and a Decomposition into Geometric Primitives. Applied sciences. 2021. 11(5), 2268.

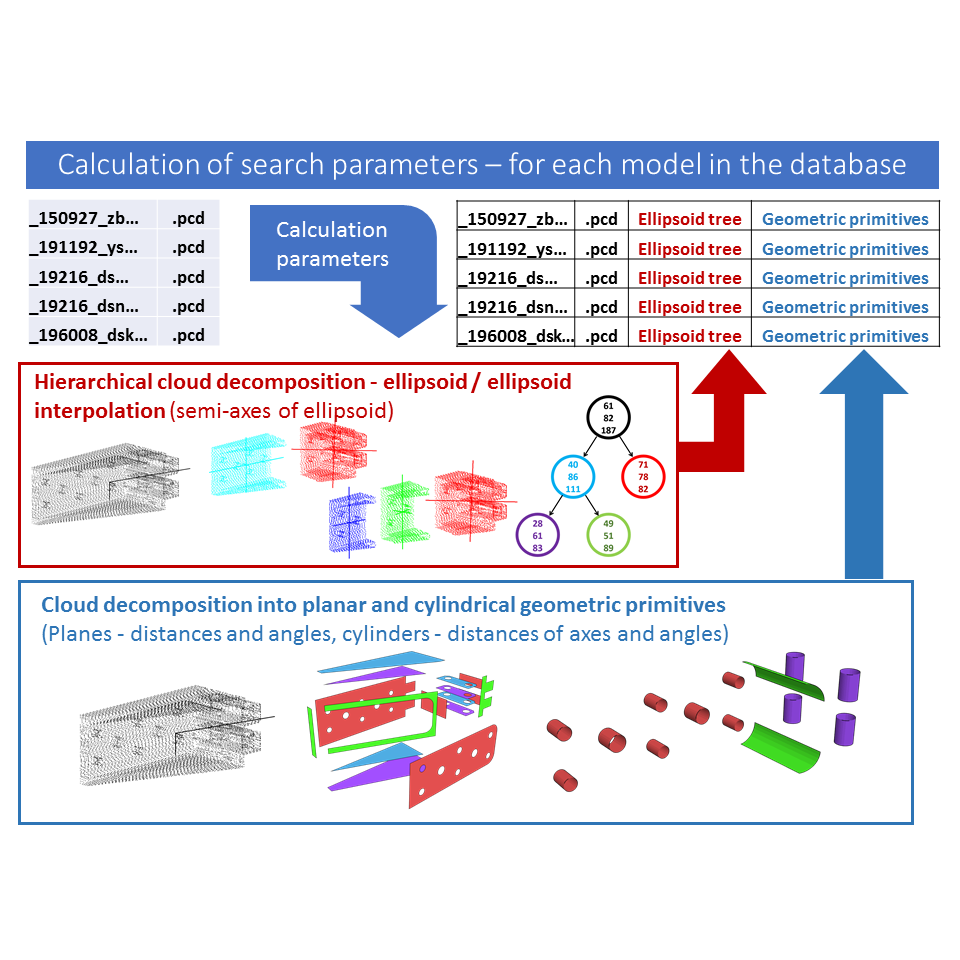

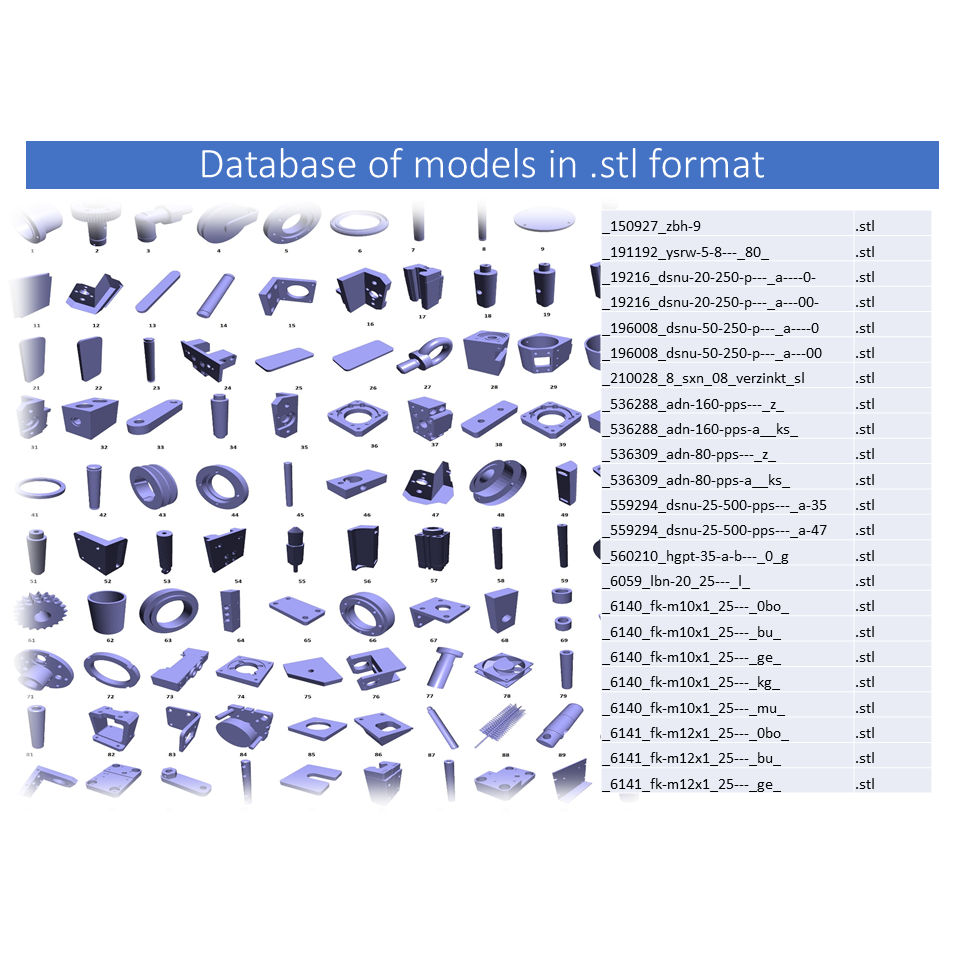

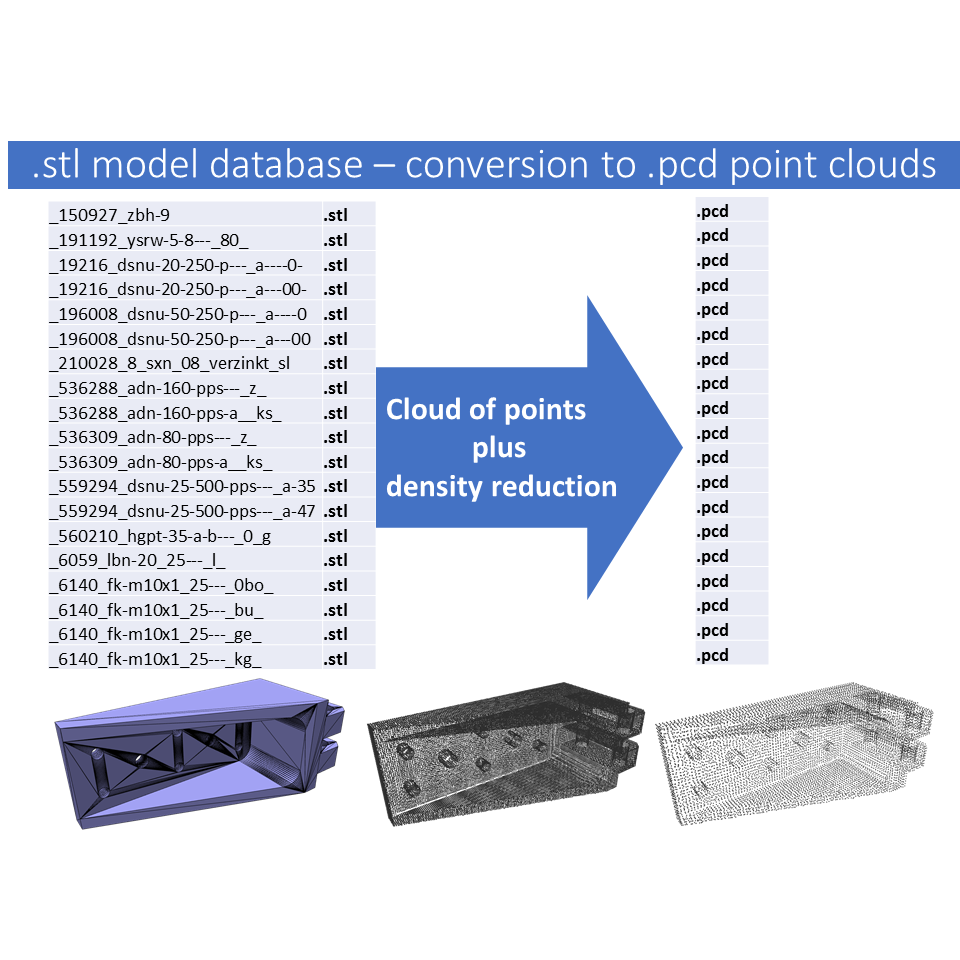

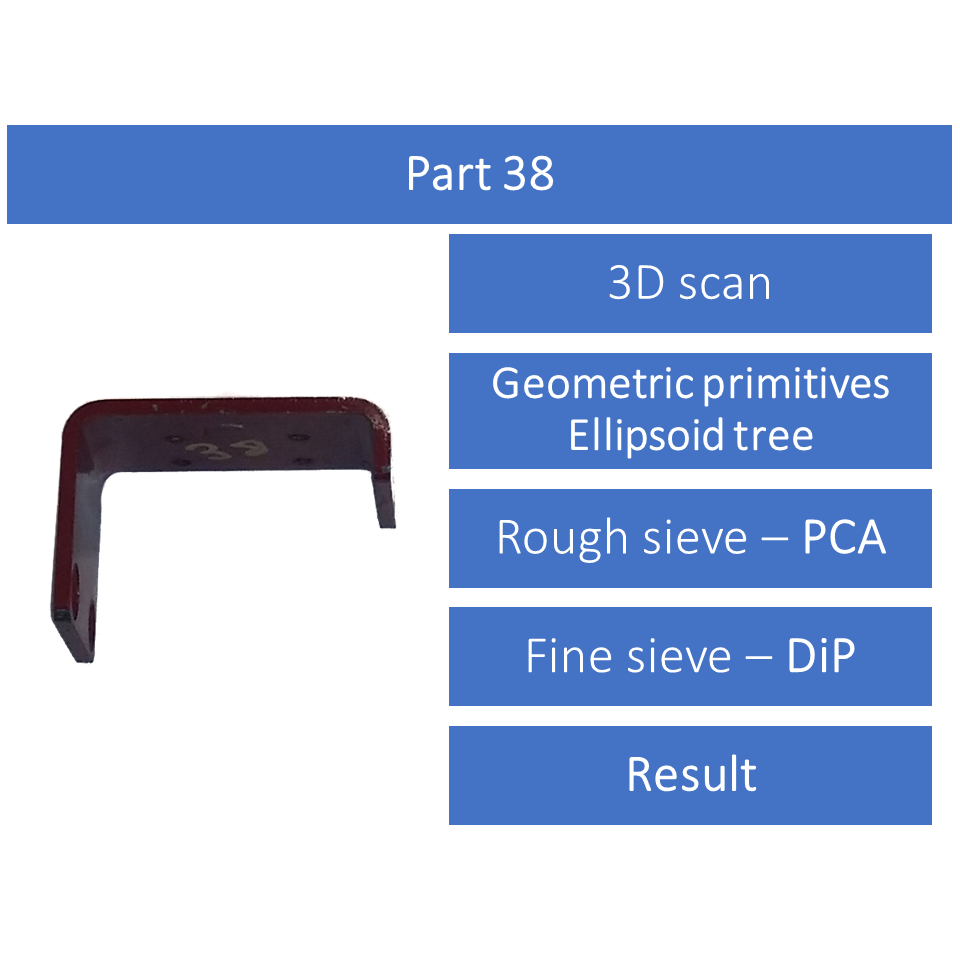

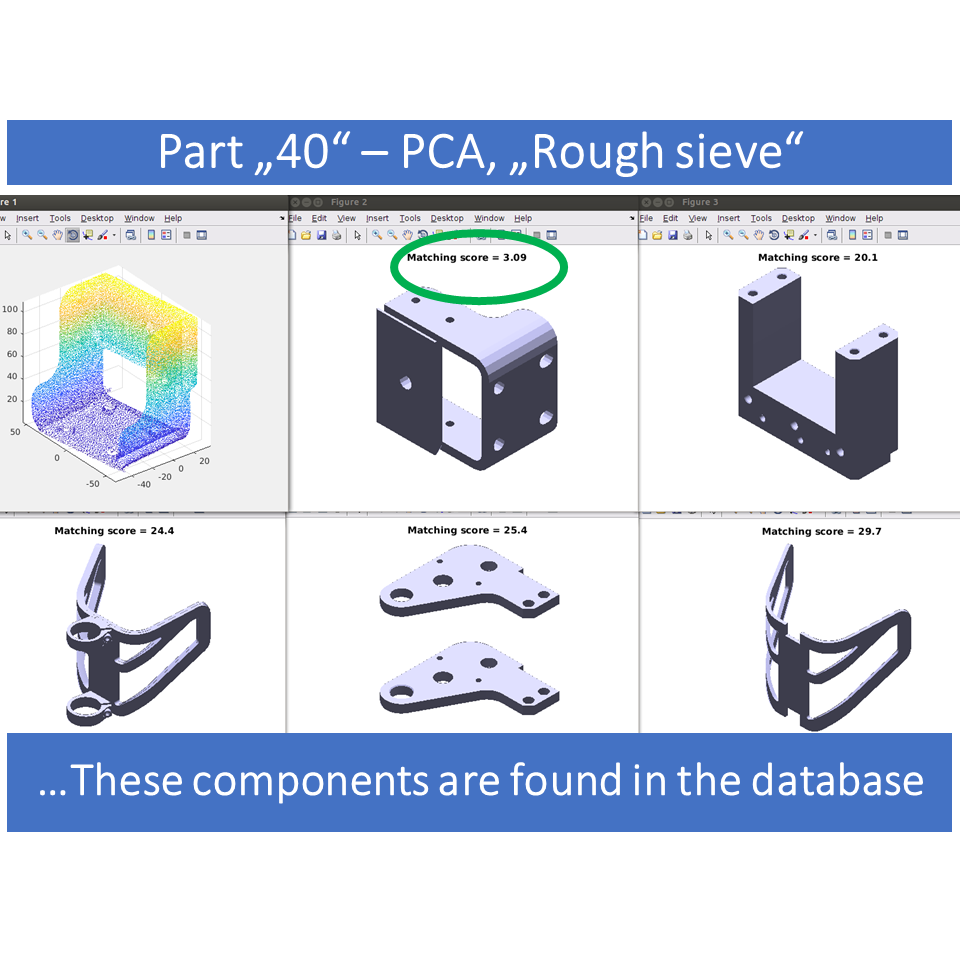

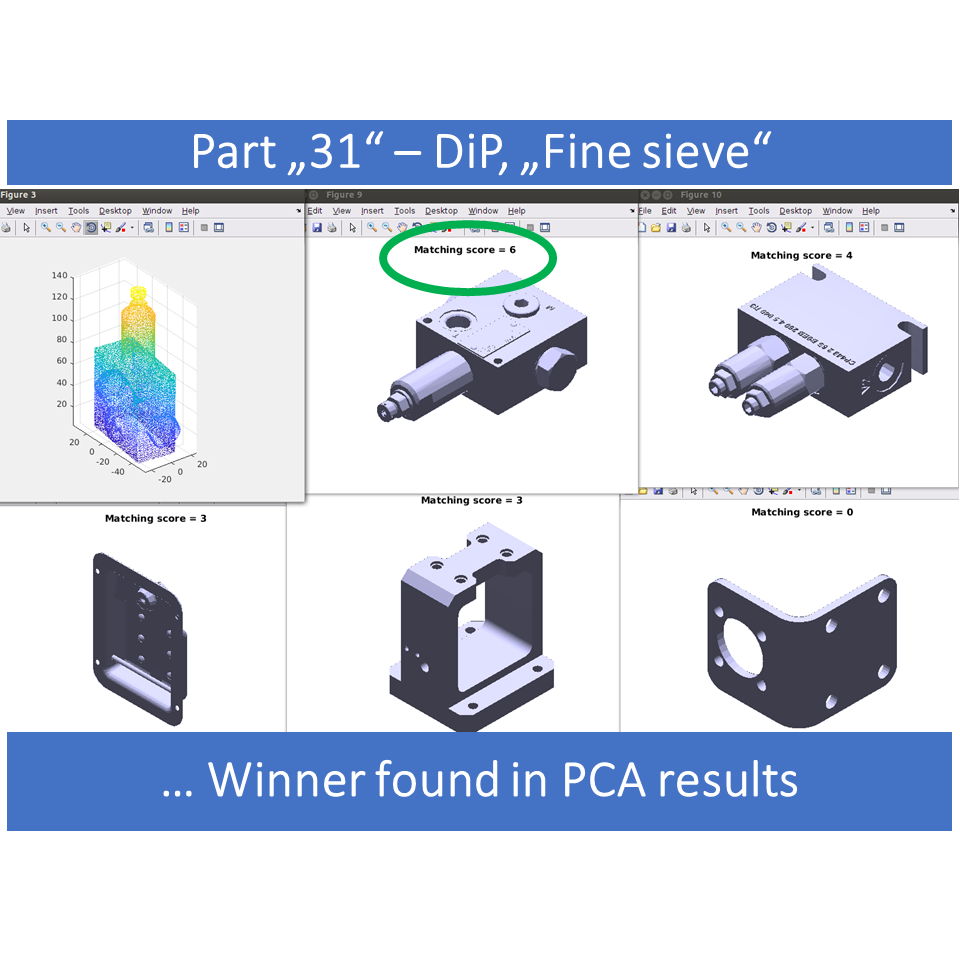

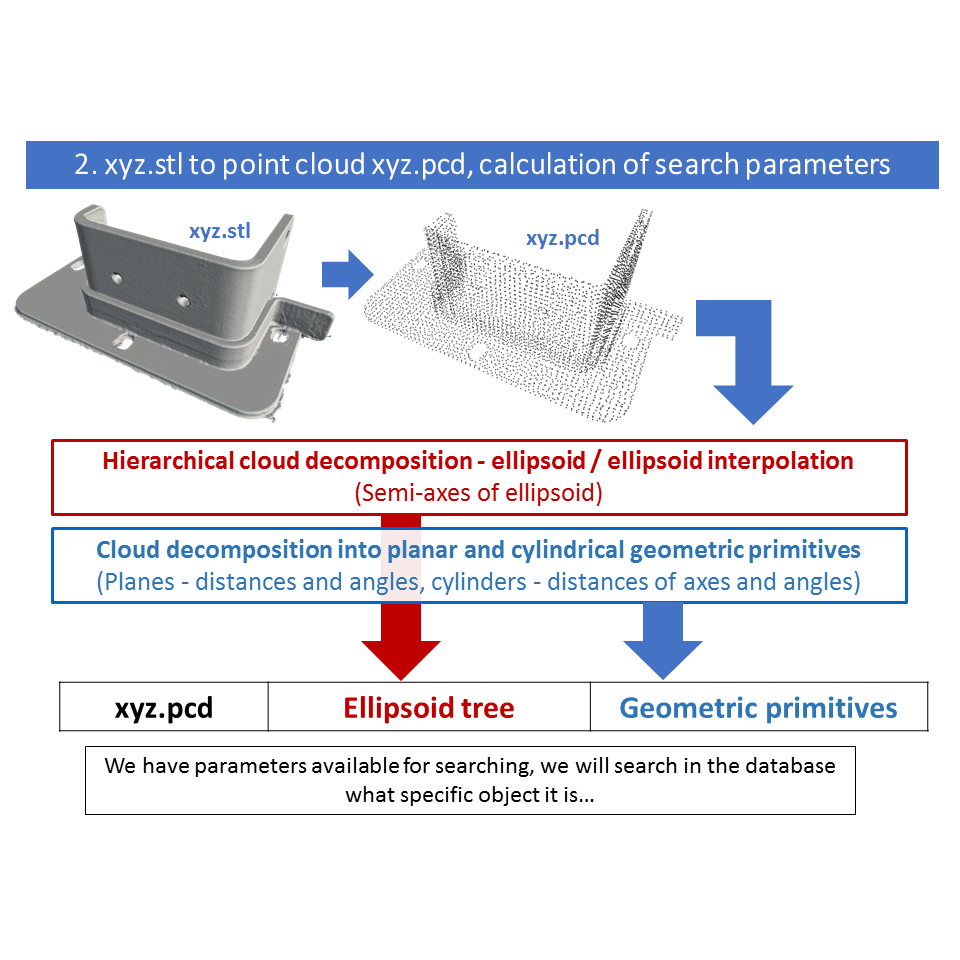

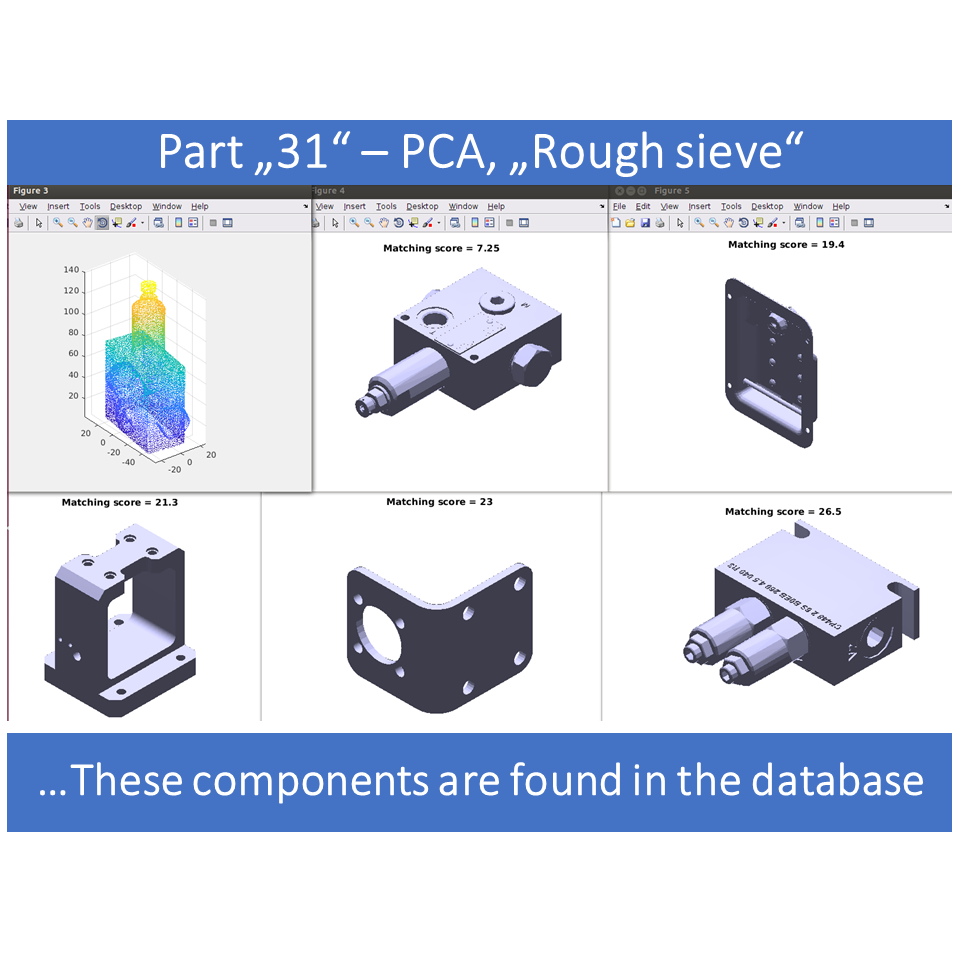

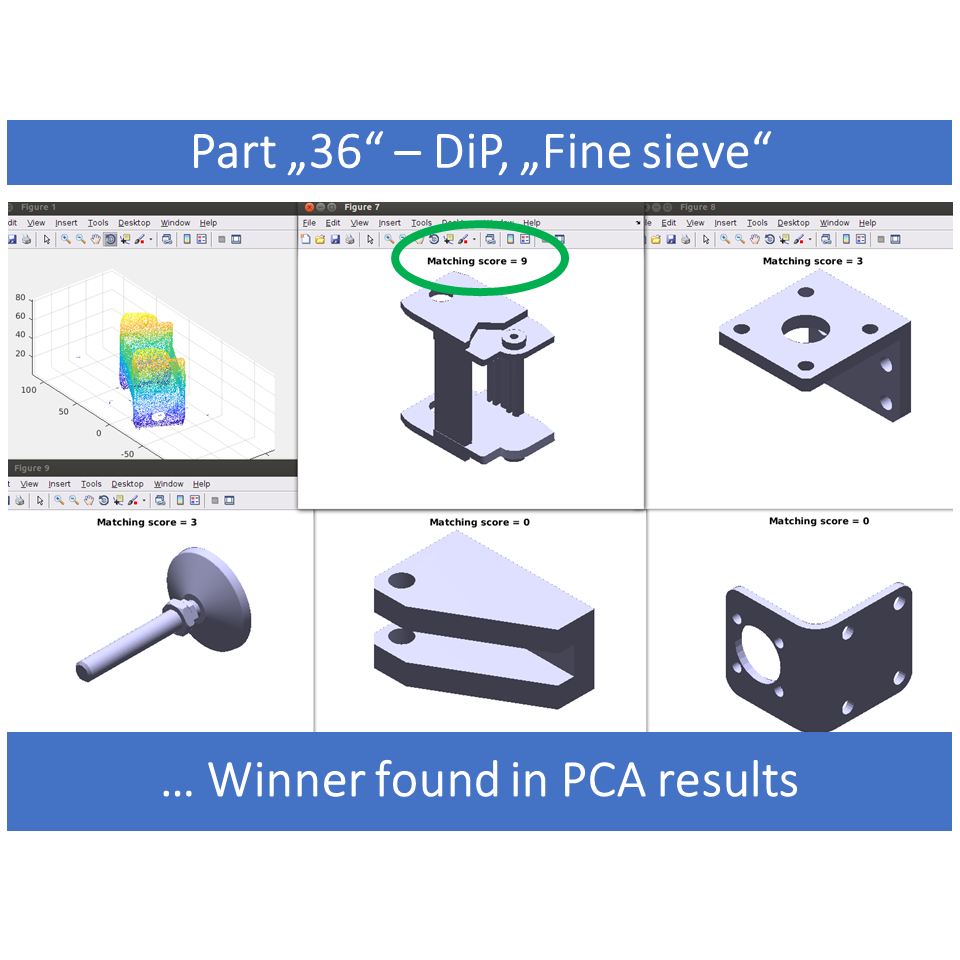

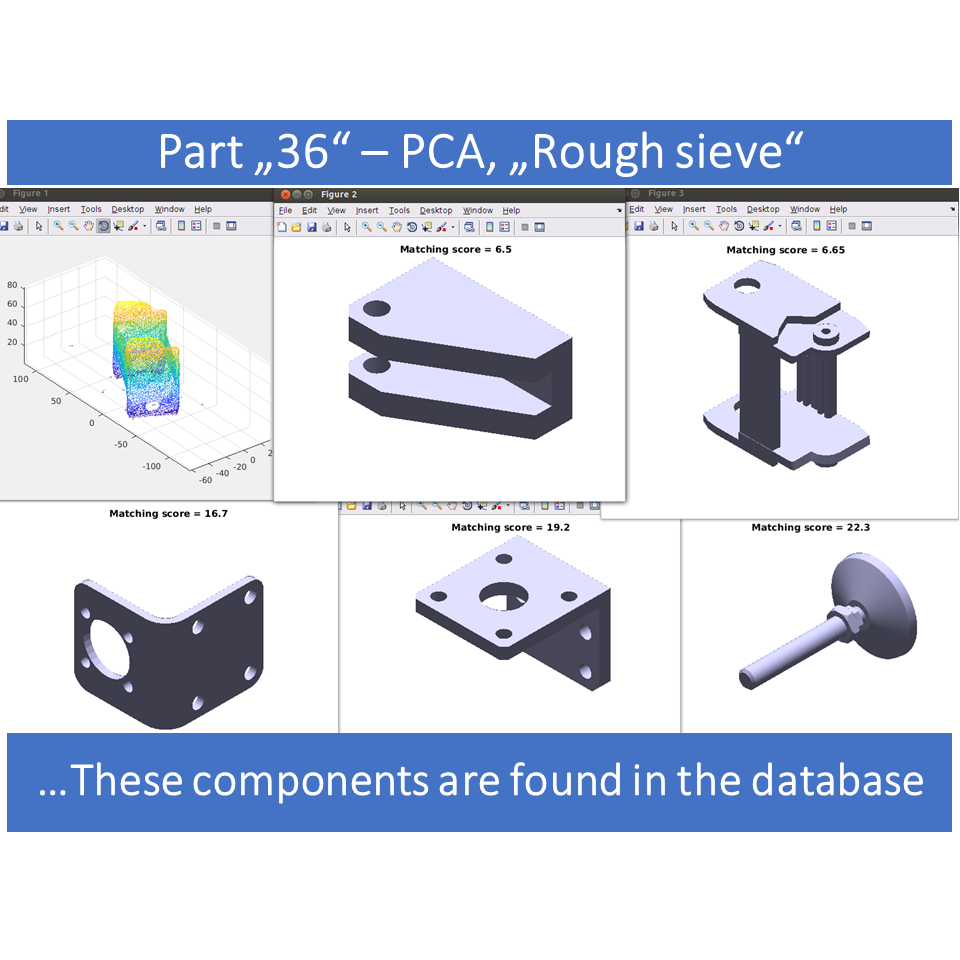

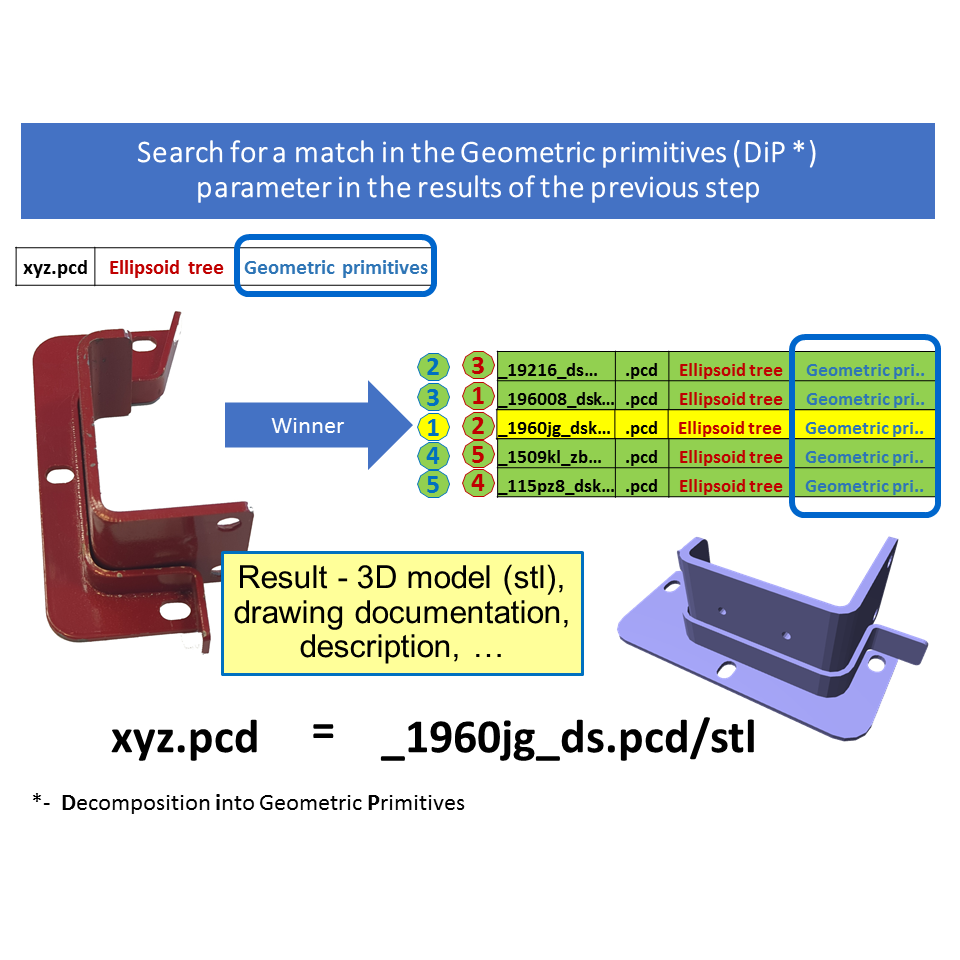

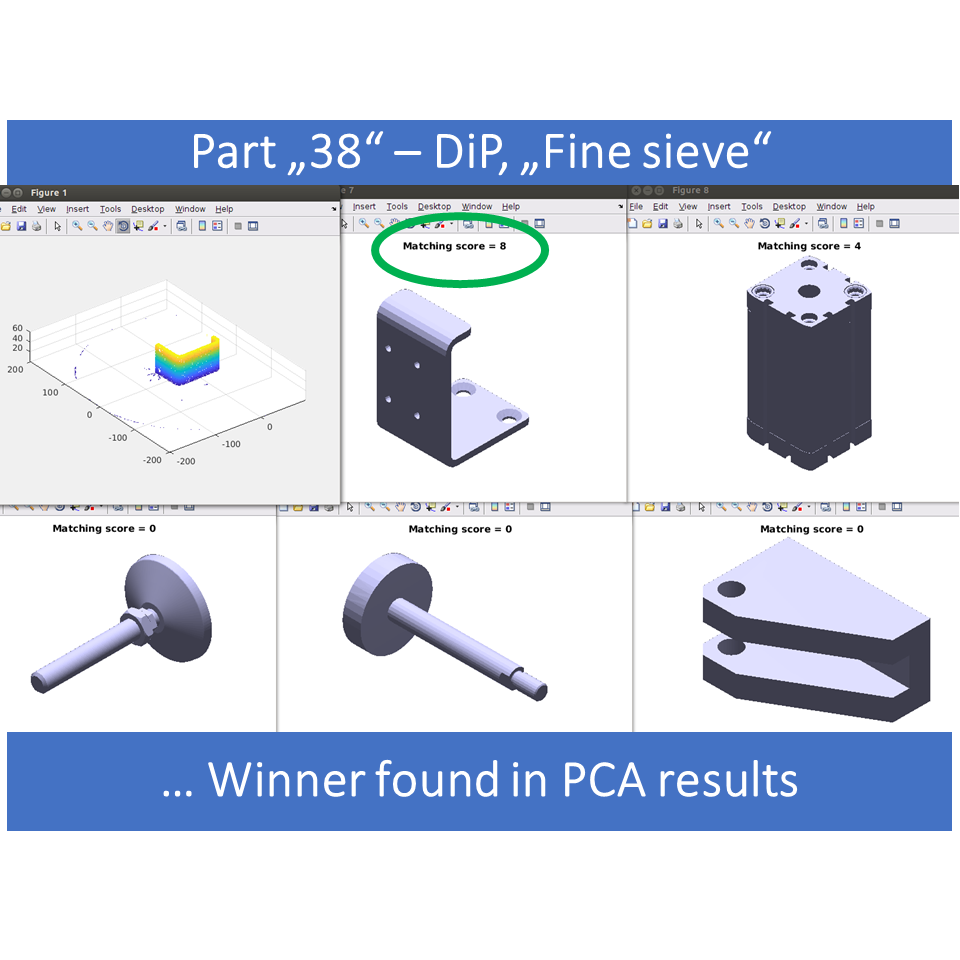

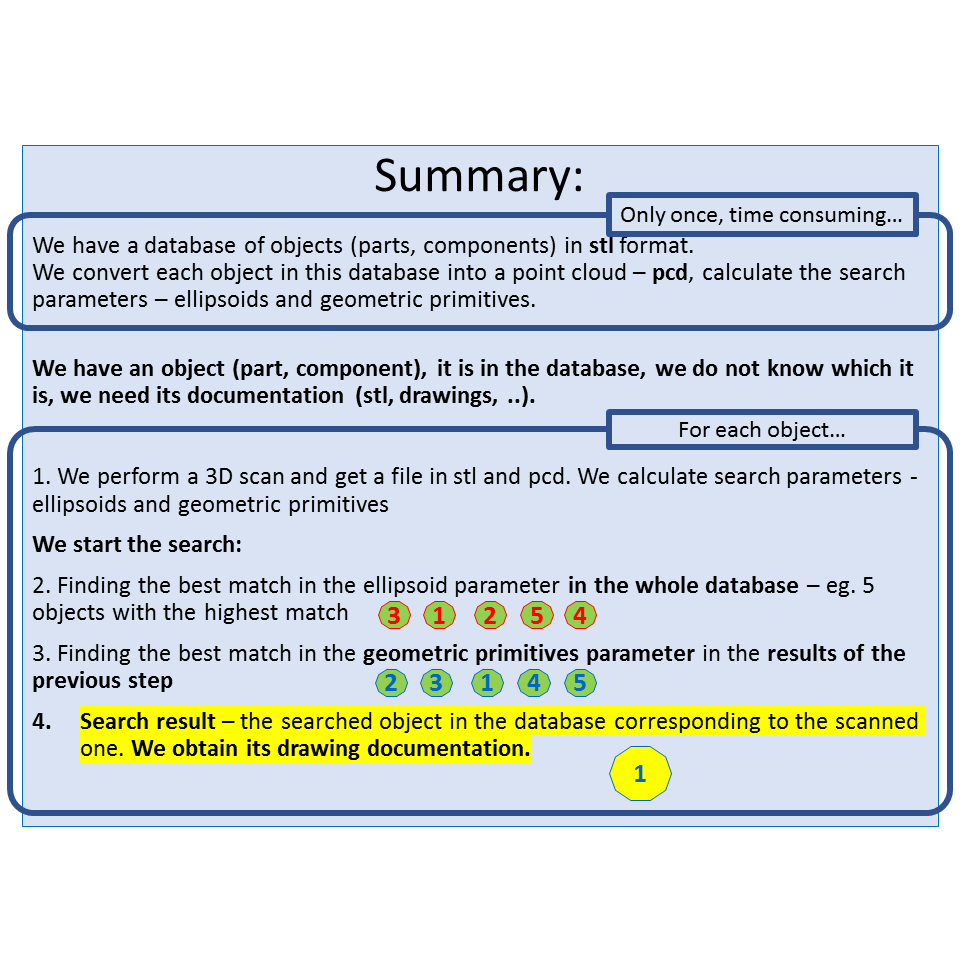

And the whole process is explained in a PDF presentation (see also the slides below):

• Automated searching for drawing documentation of an unknown object – part, component
